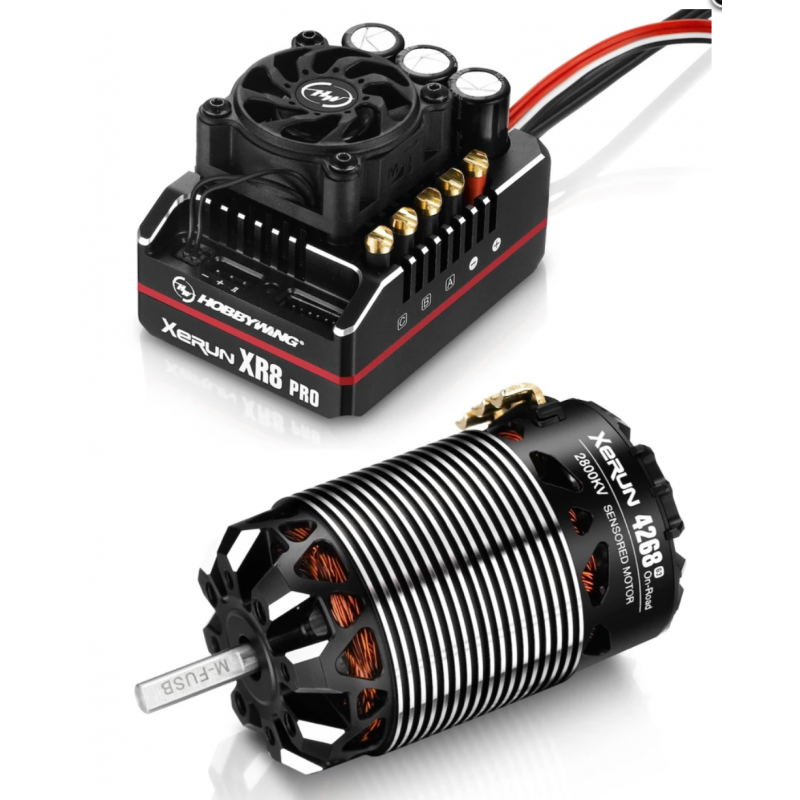

Xerun Combo Brushless 1:8 XR8 Pro G2 200A+Motore 4268SD G3 2000Kv - OnRoad

€218.03

Hobbywing 38020429 Xerun Combo Brushless 1:8 XR8 Pro G2 200A+Motore 4268SD G3 2000Kv - OnRoad

Quantity
In Stock

Product code: HW38020429
  • Secure payments with Paypal, Credit Cards or Bank Transfer Secure payments with Paypal, Credit Cards or Bank Transfer
  • Delivery in 24 - 48 hours after payment Delivery in 24 - 48 hours after payment
  • You can return your item within 8 days of delivery You can return your item within 8 days of delivery

ESC

XR8 Pro G2 200A featured by the following elements:

Built-in 5 common profiles, suitable for all 1/8 Racing, select and use instantly. (e.g. Zero timing-Blinky mode, 1/8 Off-Road Racing, 1/8 On-Road Racing, 1/8 GT Racing, 1/8 Sport mode.

29 built-in adjustable parameters to set various power requirements.

The parameters can be imported and exported, which is convenient for drivers to communicate with and learn from each other.

Support the firmware upgrade of the ESC (The multi-function LCD programming box or OTA Programmer is needed to purchase). You can enjoy the latest functions.

Support 48 degrees Boost and Turbo timing.

When matching with XERUN 1/8 motor (G3 4268/4274) motor, the Max. Speed can be promoted by 50%, easily win your rival.

Multiple function: Low voltage protection, thermal protection of the ESC, motor and capacitor.

Built-in switch mode BEC with a maximum output of 15A and voltage adjustable from 6V to 8.4V (step: 0.1V) for usage with servos & other devices require different voltages.

The built-in reverse connection protection circuit of the ESC avoid the damage to the ESC due to reverse connection.The record function of off-line data can read the Max.

Temperature and RPM of the ESC and motor by HW Link (OTA Programmer - sold separately), which is convenient for driver to analyze the running of the power system.

The record function of real-time data:Open this function by connecting the ESC with HW Link through OTA Programmer.  it allows to check throttle quantity, Voltage, Current, Temperature, RPM and other data in real time, and obtain the running status of the ESC and motor.

*The full-sensored running mode can only be realized when pairing this ESC with the 1/8th G3 sensored brushless motor or newer version

MOTOR

This is the new 2000KV Hobbywing Xerun 4268SD G3 4-pole brushless motor recommended for 1:8 On-road category.

This new G3 motor series adopts the new patented "error-free" sensor technology (without errors), which allows to guarantee the maximum performance always, at any time in a stable manner, detecting the position of the internal rotor with maximum precision, and thus avoiding the possibility that there may be errors at the sensor port. With the integrated chip, the Xerun G3 motor can be recognized by the Hobbywing Xerun XR8 ESCs, this combination results in a 100% sensor controlled drive system, moreover, the hall sensor system ensures clean and stable operation.

Compared to the previous G2 version, this new G3 engine has been redesigned and thanks to its new improved and optimized internal structure it is more efficient by 6%, with also a significant reduction in the operating temperature.

It also features the possibility of adjusting the mechanical advance, in both directions of rotation of the engine (clockwise or anti-clockwise), from 20 to 40 degrees, so as to be able to find the right engine delivery setup, adapting it to every condition, situation. and need.

It was made with the best materials and high precision machinery to obtain a product of the highest quality. The motor case was manufactured from a single piece of CNC machined 7075 aluminum and the sensor holder is housed in a silicone gasket. Moreover, thanks to this innovative design, this G3 engine has been lightened and is about 20 grams lighter than other category engines on the market.

Technical specifications

Recommended category: 1/8 On-road
Motor type: Brushless with Sensors
Number of Poles: 4
KV power: 2000
Lipo Cell Power Supply: 2-6s
No-load current: 4.2A
Diameter: 42mm
Length: 67.8mm
Shaft diameter: 5mm
Weight: 285g
Mechanical Timing: 20-40 degrees adjustable

HW38020429
