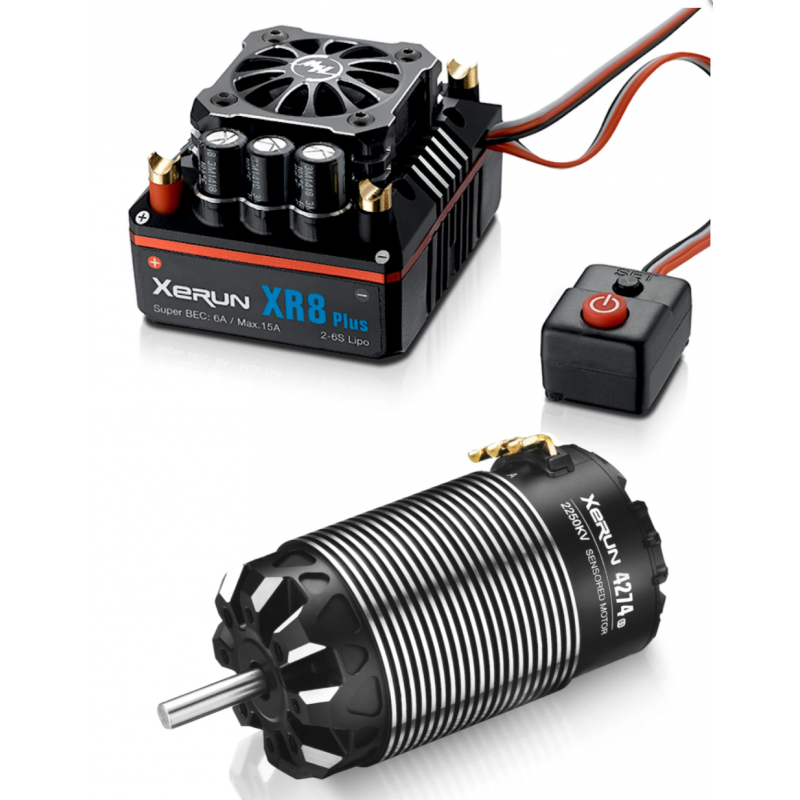

Xerun Combo Brushless XR8Plus 150A+Motor 2250KV 4274SD G3 1:8 OnRoad-OffRoad

€221.23

Hobbywing 38020431 Xerun Combo Brushless XR8Plus 150A+Motor 2250KV 4274SD G3 1:8 OnRoad-OffRoad

Quantity
In Stock

Product code: HW38020431
  • Secure payments with Paypal, Credit Cards or Bank Transfer Secure payments with Paypal, Credit Cards or Bank Transfer
  • Delivery in 24 - 48 hours after payment Delivery in 24 - 48 hours after payment
  • You can return your item within 8 days of delivery You can return your item within 8 days of delivery

Hobbywing ESC Xerun XR8Plus 150A

XR8 PLUS featured by the following elements:

  • Super built-in BEC with the peak output current of up to 15A and switchable output voltage of 6V/7.2V;
  • Advanced electronic switch with the lifespan of over 50000 times of switching on & off;
  • High-efficiency heat-dissipating system;
  • Special dynamic timing control program is available when this ESC runs in full-sensored mode* ;
  • Innovative coasting function (patent pending)
  • ESC customization by a LCD program box (Purchase separately) or  OTA programmer  (Purchase separately)
  • *The full-sensored running mode can only be realized when pairing this ESC with the 1/8th scale new sensored brushless motor HOBBYWING is going to release.

Technical Spec

  • Cont./Peak Current: 150A/950A
  • Motor Type: Sensored / Sensorless Brushless Motor
  • Main Applications: 1/8th Scale On-road, Buggy, Truggy for High-level Races
  • Motor Limit:
  • 3S LiPo/9cell NiMH: 3660 size motor, KV≤4500
  • 4S LiPo/12S NiMH:≤ KV3000 for 4274 size
  • 6S LiPo/18S NiMH:≤ KV2400 for 4274 size
  • BEC Output: 6V/7.2V Switchable, Continuous Current of 6A (Switch-mode BEC)
  • Cooling Fan: Powered by the stable BEC output voltage of 6V/7.2V
  • Size/Weight: 58.7(L) x 48(W) x 36.9(H) / 127g (W/O Wires)
  • Programming Port: FAN/PRG Port
  • ESC programming: LCD Program box

Hobbywing Motor 2250KV 4274SD G3

  • Turbo Timing Technology
  • Full Sensored mode (when paired with XR8 ESC series)
  • Adjustable Timing (Bi-Directional) 20-40 degrees
  • Advanced Hall Sensor System
  • 4-pole-8-magnet "Staggered Pole" rotor - HOBBYWING Patented design
  • Guarantees users effective heat dissipation and dust-prevention
  • The use of double insulated windings (240°C R-rated), NMB bearings from Japan, and the
  • high-intensity adhesive (340°C) guarantees users outstanding performance and super durability.
  • Best application: 1/8th Monster Truck, SCT, Buggy, Truck, and Touring Car
HW38020431
