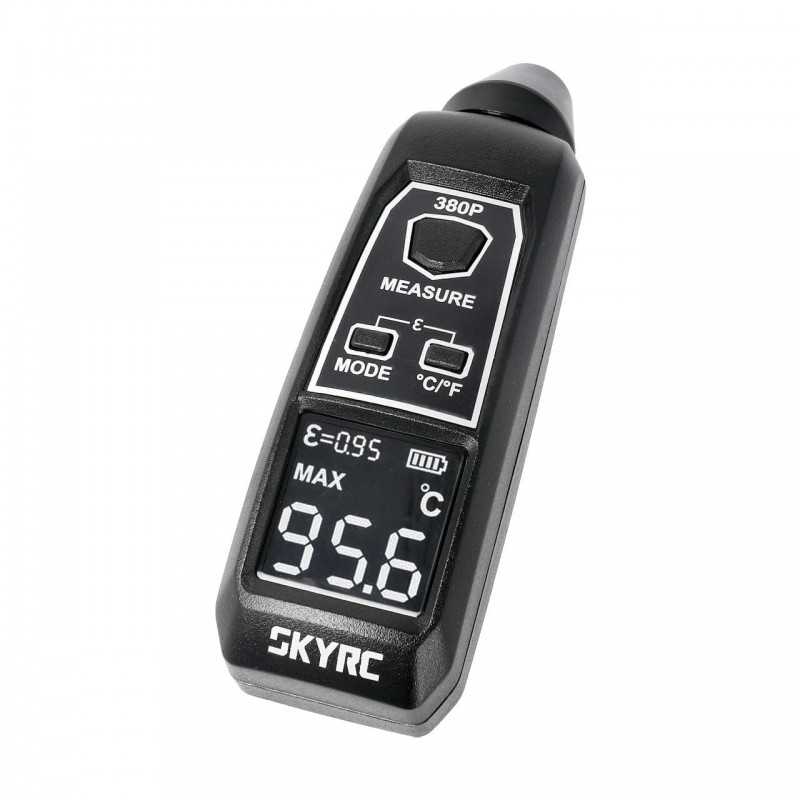

The SkyRC ITP380 is an ultra-compact non-contact infrared thermometer designed for safe and fast temperature monitoring of RC engines, electric motors, battery packs, chargers, and electronic speed controllers. Featuring an advanced thermopile sensor housed in a classic TO-46 package on a silicon chip, this tool delivers highly accurate temperature readings within 1 second while keeping the operator at a safe distance from rotating or burning components. It is equipped with a premium high-contrast VA invert display for clear visibility from any angle, whether indoors or outdoors. Product code: SK500037-02.
Secure payments with Paypal, Credit Cards or Bank Transfer
Delivery in 24 - 48 hours after payment
You can return your item within 8 days of delivery
Pay in convenient installments with Klarna or PayPal
The SkyRC ITP380 utilizes a professional-grade thermopile sensing element enclosed in a shielded TO-46 housing. The sensor array is composed of 116 small thermocouple elements with an active area diameter of 545 micrometers on a silicon chip, absorbing thermal radiation to produce an immediate digital output accurate to 0.1 degrees. Boasting a balanced 6:1 Distance-to-Spot (D:S) ratio, the thermometer measures a 1-inch diameter area when positioned 6 inches away from the target (approx. 2.5 cm at 30 cm distance), enabling safe and reliable diagnostics on critical electronics.
To ensure precision across different surface materials commonly found in RC models, the ITP380 allows manual adjustment of the emissivity frequency range from 0.01 to 1.00. This baseline adaptation eliminates reading discrepancies between shiny metals and matte plastics. The firmware provides four individual operating modes:
The integrated VA invert display technology provides ultra-high static contrast ratios, offering optimal readability under direct sunlight or low pit-lane illumination. The smart interface presents all essential data at a glance (temperature, emissivity coefficient, selected mode, battery capacity, and measurement unit) without scrolling. Calibrated to match strict NIST-traceable measurement standards, the device features operational beep signals that can be silenced, along with an automatic power-off routine after 60 seconds of inactivity to maximize battery lifespan.
Measurement Range: -40 to +380 degrees Celsius (-40 to +716 degrees Fahrenheit)
Accuracy Tolerance: +/- 1.5 degrees Celsius
Distance-to-Spot Ratio (D:S): 6:1
Power Delivery: 2x AAA batteries (not included)
Operating Current: less than or equal to 40 mA at 3.0V
Current Drain: less than or equal to 25 uA at 3V
Dimensions: 121 x 40 x 39.6 mm
Weight: 75 grams
Operating Temperature: 0 to +50 degrees Celsius
