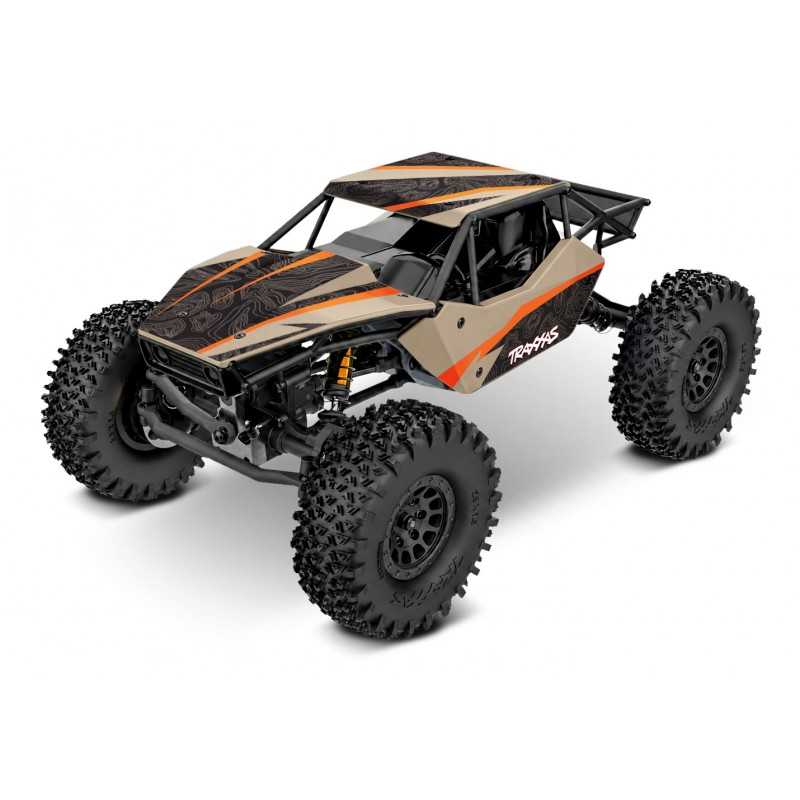

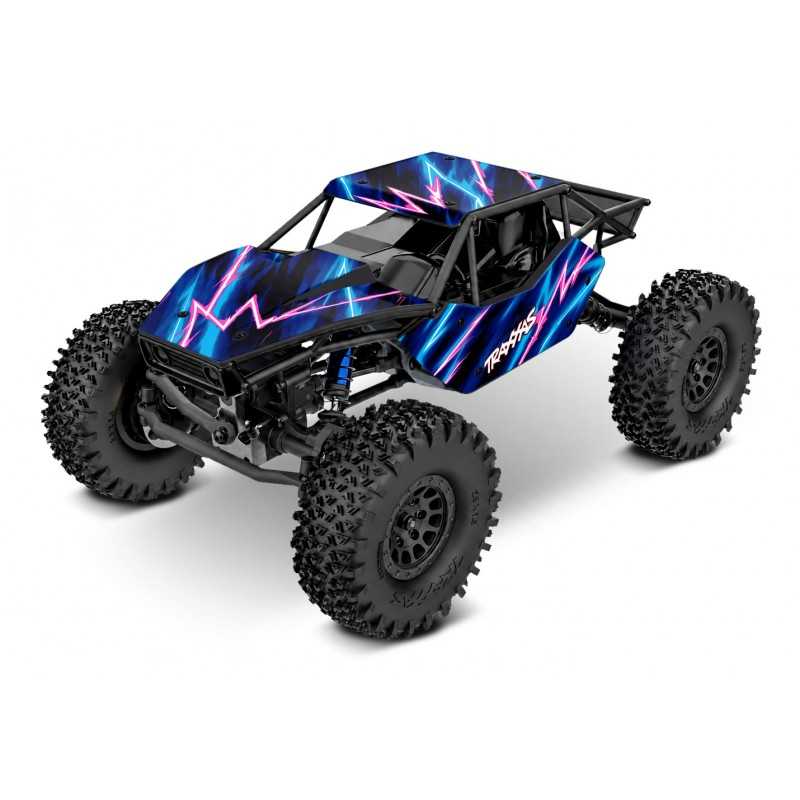

A New Way to Experience RC Crawling

With the new Traxxas TXC-4M Extreme Crawler, Traxxas takes crawling in a completely new direction. This 1/18 scale model is based on an all-new design centered around an innovative monocoque chassis, allowing Traxxas engineers to optimize weight, rigidity, weight distribution, and suspension geometry.

The result is a compact yet extremely capable crawler designed to tackle technical trails, obstacles, and steep climbs with a combination of precise control, exceptional traction, and impressive ground clearance. The 3S brushless power system, full-time 4WD driveline, portal axles, and Stone Claw™ tires work together to deliver an entirely new crawling experience.

3S Brushless Power and Precise Control

At the heart of TXC-4M is a 3350 kV 3S sensorless brushless motor, paired with a 3S brushless ESC featuring Field Oriented Control (FOC). This technology provides exceptionally precise throttle control and strong torque even at extremely low speeds.

The included 11.1-volt 250 mAh 3S LiPo battery works together with the included USB charger featuring iD® technology, providing everything needed to get started right out of the box.

The ESC also offers three dedicated driving modes:

• Sport Mode: forward, brake, and reverse.
• Trail Mode: forward, brake, and reverse, with a trail-tuned drag brake in neutral.
• Crawl Mode: forward and instant reverse, with no neutral and 100% hill-holding brake.

The electronics are fully waterproof, allowing TXC-4M to be enjoyed in a variety of weather conditions.

The Innovative Monocoque Chassis

One of the defining features of TXC-4M is its new composite monocoque chassis, specifically engineered for this project.

Unlike traditional ladder-frame designs, the monocoque structure provides greater torsional rigidity while reducing overall weight. The battery and ESC are positioned low in the chassis and mounted on opposite sides to optimize weight distribution.

The design achieves a 60% forward weight bias, an important characteristic for technical crawling because it increases front-wheel traction and helps the model climb steep obstacles.

The chassis also incorporates integrated rock-light mounting points and dedicated wire routing.

Full-Time 4WD Driveline and Portal Axles

TXC-4M uses a full-time shaft-driven 4-wheel-drive system engineered to handle the torque generated by the 3S brushless power system.

The portal axles increase ground clearance under the center of the vehicle while helping reduce torque twist by transferring gear reduction toward the wheels.

The driveline features:

• all-metal transmission gears;
• full ball bearings throughout the driveline;
• locked differential spools;
• steel axle shafts;
• steel U-joints;
• heavy-duty CV center driveshafts;
• 25% front axle overdrive.

The internal gear ratio is 74.1:1, providing extremely precise low-speed control and the high torque required for technical crawling.

60° Steering and Technical Geometry

TXC-4M delivers an impressive 60° steering angle, designed to help navigate technical terrain and maintain precise control through tight sections.

The waterproof Traxxas 2265 steering servo features full-metal gears and produces 75 oz-in of torque. It is horizontally mounted and directly connected to the steering system without a servo saver, using a high-throw metal servo horn.

High-clearance steering and drag links help keep the steering components clear of rocks and other obstacles.

GTM Pro Oil-Filled Shocks

The suspension geometry has been specifically developed for technical crawling.

TXC-4M features triangulated 4-link suspension front and rear, with a lay-down shock design and high-clearance lower links.

The aluminum GTM Pro oil-filled shocks provide smooth, controlled damping. Their O-ring-sealed aluminum bodies can also be easily serviced using available rebuild kits.

Stone Claw™ Tires and Method Race Wheels®

To tackle demanding obstacles, Traxxas developed the new Stone Claw™ tires, measuring 1.3 x 2.8 inches, molded from a high-grip rubber compound.

The aggressive stepped-block tread pattern and wide directional sipes increase the number of contact edges with the surface, helping maximize traction on rocks and technical obstacles.

The tires are mounted on licensed 1.3-inch Method Race Wheels®, featuring a 3-piece beadlock design and 7 mm wheel hex.

Clipless Tube-Frame Body

TXC-4M is finished with a lightweight clipless tube-frame body, designed to keep the center of gravity low while providing maximum clearance during technical crawling.

The body panels are replaceable and can be customized with separately available accessories. A detailed interior with a driver figure adds a realistic scale appearance.

A simple rear clipless latch provides quick access to the model, while integrated mounting points are ready for the separately available lighting kits.

Compact Dimensions, Extreme Capability

Despite its compact dimensions, TXC-4M is engineered to tackle significant obstacles. The model measures 234 mm in length, 149 mm in width, and 107 mm in height, with a 168 mm wheelbase and 43 mm center ground clearance.

The combination of a low-CG chassis, forward weight bias, portal axles, and high-grip tires gives TXC-4M exceptional capability when tackling steep climbs and technical obstacles.

The model delivers a 56.3° driving incline angle and a 79.8° static incline angle, highlighting the extreme crawling capability built into this compact platform.

TQ Compact 2.4 GHz Radio System

TXC-4M includes the TQ Compact 2.4 GHz 2-channel radio system.

The compact transmitter features a removable color-matched grip adapter and a high-output signal designed to provide outstanding range. The compact receiver also features dual servo channels and dedicated LED channels.

Ready to Drive

The Traxxas TXC-4M Extreme Crawler comes fully assembled in Ready-To-Drive® configuration.

The package includes:

• TXC-4M Extreme Crawler 1:18;
• clipless tube-frame body;
• 3S brushless power system;
• TQ Compact 2.4 GHz transmitter;
• 11.1-volt 250 mAh 3S LiPo battery;
• USB quick charger with iD® technology;
• high-quality maintenance tools.

Required to start:

• 4 AA alkaline batteries for the transmitter;
• a USB-A power source, with a minimum of 5 V and 2 A recommended.

An All-New Design

From the monocoque chassis to the portal axles, from the 3S brushless power system to the 60° steering angle, every element of TXC-4M has been designed around one goal: bringing extreme crawling capability to a compact format.

The new Traxxas TXC-4M is not simply an evolution of an existing model. It is an all-new design developed to deliver a precise, technical, and engaging driving experience, with a complete package engineered for demanding trail and crawling conditions.

-------
