• New
WTS Transponder Black Pro
  • WTS Transponder Black Pro
  • WTS Transponder Black Pro
  • WTS Transponder Black Pro
  • WTS Transponder Black Pro
  • WTS Transponder Black Pro

WTS Transponder Black Pro

€69.90
Tax included

WTS2 | WTS Transponder Black Pro: professional RC race timing, compatible with AMB/MyLaps RC2, RC3 and RC4 (firmware 4.4 or lower). Compact, lightweight (4g) and race-ready.

This Product is not available ✖ Out of stock - reservable

Product code: WTS2

Pay in convenient installments with Klarna or PayPal

  • Secure payments with Paypal, Credit Cards or Bank Transfer Secure payments with Paypal, Credit Cards or Bank Transfer
  • Delivery in 24 - 48 hours after payment Delivery in 24 - 48 hours after payment
  • You can return your item within 8 days of delivery You can return your item within 8 days of delivery
  • Pay in convenient installments with Klarna or PayPal Pay in convenient installments with Klarna or PayPal

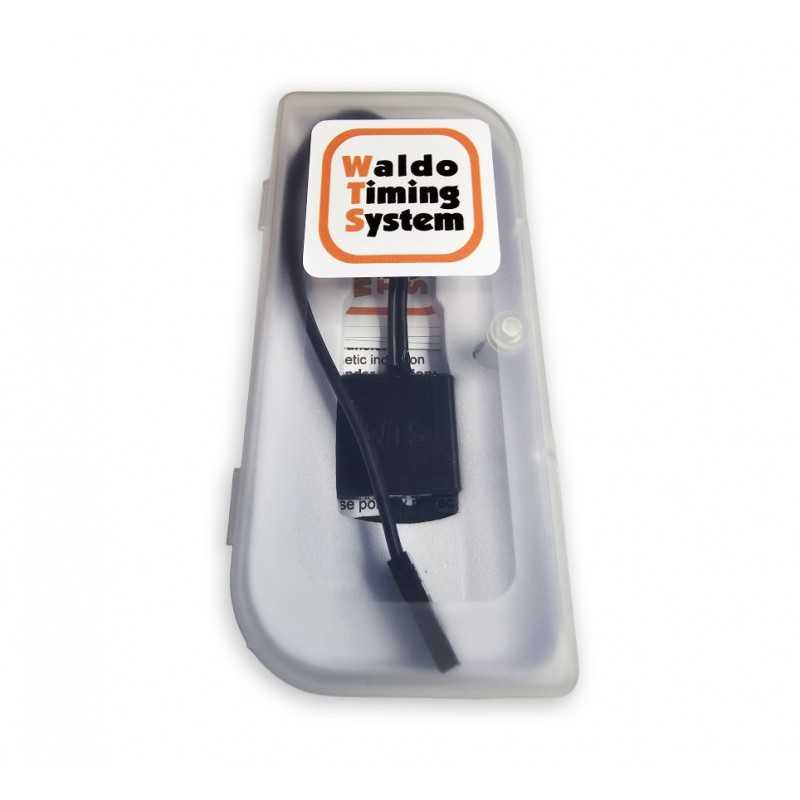

WTS Transponder Black Pro – Precision Race Timing for Competitive RC

The WTS Transponder Black Pro (Item WTS2) is a professional race timing device designed for RC tracks equipped with magnetic induction transfer systems. It is dedicated purely to lap counting and timing via its unique 7-digit ID, and is ready to use right out of the box by connecting it to a battery or a free receiver channel.

Compatible with:

  • MyLaps RC2 / RC3 (AMBrc)
  • MyLaps RC4 with firmware 4.4 or lower
  • Cano
  • RCHourglass
  • WTS-Alfa (system currently under development)

NOT compatible with:

  • MyLaps RC4 with firmware 4.5 or newer

If you're unsure which system your local track uses, check with the track organizers before buying.

Technical specifications

  • Dimensions: 19 x 19 x 6 mm
  • Weight: 4 g
  • Temperature range: 0-50°C
  • Humidity: max 90% relative
  • Signal transfer: magnetic induction
  • Transponder position: horizontal
  • Max height: 15 cm
  • Power feed: receiver channel or battery
  • Connector: standard servo plug
  • Operating voltage: 3V-16V DC (reverse polarity protected)
  • Power consumption: 14 mAh @ 6V
  • Display LED: ultra-bright red
  • Case & cable colour: black (elastic silicone cable)

Maintenance: replacing the power cable

The WTS Transponder's power cable can be replaced. Procedure:

  • Gently preheat the black part of the case to around 80°C
  • Carefully remove the PCB from the case
  • Solder the new cable to the PCB pads, respecting polarity
  • Reinsert the PCB into the case
  • Seal the case with hot glue

About WTS – Waldo Tech Systems

WTS was founded by Waldemar Borek, an RC racer as well as a hardware and software engineer, who set up Waldo Tech Systems to design and manufacture professional timing transponders and PC transmitter adapters in-house. Every piece of hardware is built starting from circuit and PCB layout design, with close attention to the standard signals used by timing systems on racing tracks. All WTS products are track-tested by the WTS Racing Team under real racing conditions to guarantee reliability.

>>> Buy your WTS Transponder Black Pro from Italtrading, official distributor in Italy!
